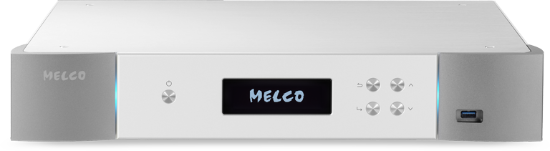

N5-H50 Digital Music Library

Description

The N5 Digital Music Library is the next generation of the acclaimed Melco concept for extreme sound quality from both music stored within the N5, networked music, and external streaming services when used with a USB-DAC.

All Digital Music Libraries play music into either Network Streamers or will play into USB-DAC, and can also be configured to operate without an Ethernet network.

N5 features all-new electronics, with a new mainboard, high grade low noise internal linear power supply and extensive pro-grade connectivity.

Mechanical construction contributes to sound quality by minimising vibration and resonances, with isolating HDD mounting, robust steel panels and substantial aluminium components, and TAOC cast iron feet.

Features

• Selected 5TB HDD drive with Melco HS3 (Highly Stable Storage System) mounting to optimise sound quality
• Pro-grade Neutrik ethernet connectors
• Ethernet SFP port for optical LAN connectivity
• Pro-grade Amphenol USB connectors
• 2 x USB 3.0 ports and 1 x USB 2.0 port for easy backup, expansion and DAC connectivity
• Easy music import from CD, USB flash drives or
• HDD drives
• MinimServer or Twonky UPnP server or Roon Endpoint selectable
• SongKong metadata editor
• Melco N5 silver rear angle

Full Specification

• Music storage
• 1 x selected 5TB HDD  with Melco HS3 mounting

• Network connectivity
• LAN Port-Gigabit Ethernet (1000Base-T),
• Dedicated PLAYER port, Gigabit Ethernet (1000Base-T),
• SFP Port (1000 mbps MAX)

• USB connectivity
• USB 2.0 port USB DAC-dedicated
• 2 x USB 3.0 port assignable as Import, Backup, DAC or expansion
• (1 port rear and 1 port front panel)
• USB player file support: DSF, DFF, FLAC, WAV, ALAC, AIFF and AAC

• USB player sample rate support
• 16-32 bit (PCM) to 384 kHz:- auto downsample to suit connected DACs
• Gapless PCM support
• 1 bit (DSD) to 11.3 MHz Quad DSD, Markerless DSD support, Gapless DSD support
• DSD to 32 bit PCM conversion selectable
• OLED displays player sample rate and metadata

• Power supply
• Pre-set 230V AC or 120V AC dependent on locality
• Size 440 x 77 x 353mm
• Weight 10kg
