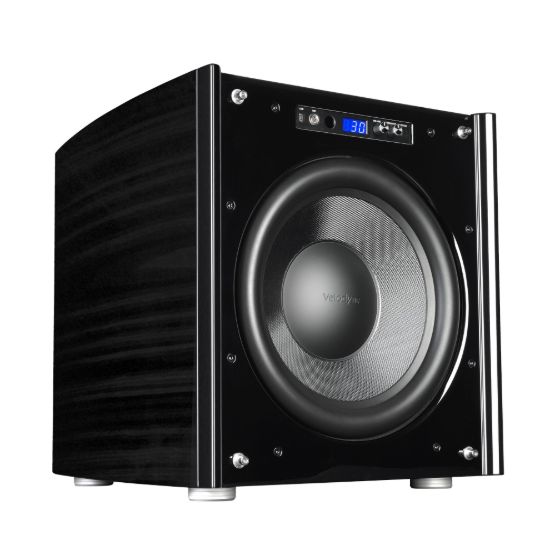

DDP-15 Subwoofer

Cutting-edge technology for real gourmets

The Digital Drive Plus series redefines the term subwoofer. Digitally controlled drivers with impressive performance, almost endless power and the latest calibration algorithms with extensive adjustment options make these subwoofers precision tools of a special class.

State-of-the-art technologies coupled with decades of experience in building subwoofers

make the Digital Drive Plus Series the essence of everything the Velodyne Acoustics brand is all about. Digitally controlled high-end drivers, extensive customization options and infinite power lead to incorruptible precision down to the lowest frequency basement

The Features

• High-performance chassis with six-way, hand-wound voice coils.
• Digital diaphragm control with 16,000 samples per second
• High-precision automatic calibration with software connection for fine tuning
• Powerful amplifiers with 1,250 watts RMS and 3,000 watts impulse power

With models ranging from 10 to 18 inches, Digital Drive Plus subwoofers are available for listening rooms of all sizes.

They all have one thing in common: maximum precision in all situations.

Specifications

• Driver 15″ forward firing
• Amplifier Class D 3000 watts dynamic, 1250 watts RMS power
• Frequency Response: Overall   9.0 – 300 Hz
• Frequency Response: (± 3 dB) 14.6 – 120 Hz
• THD   < 0.5 % (typical)
• High Pass Crossover 80 or 100 Hz at 6 dB/octave
• Low Pass Crossover 40 Hz to 199 Hz (variable in 1 Hz increments) selectable slope
• Default: 80 Hz @ 24 dB/Octave
• Phase 0 to 180 degrees (variable in 15 degree increments)
• Polarity Adjustable (+/-)
• Magnet Structure 39.7 lbs.
• Voice Coil Six-layer, 75 mm
• Cone Fiberglass Rohacell Laminate
• Input LFE (Mono) Line level (RCA), Nominal Impedance 47K, Balanced (XLR), Nominal Impedance 10K
• Input L&R Line level (RCA & XLR)
• Input Microphone Balanced (Mini-XLR, cable included)
• Input Speaker Level (L&R) Bare wire, banana plugs, or spade lugs
• Output Thru (L&R) Line level (RCA & XLR)
• Output (L&R), High-Pass (L&R) Line level (RCA & XLR)
• Included Accessories Full feature remote control, DD+ accessory kit and video cable
• Finishes Black gloss ebony or Piano Black
• Dimensions (H/W/D) (includes feet and connectors) 20” x 18.1” x 22.5” (51 x 46 x 57 cm)
• Shipping Weight (approx) 54,4 kg
