Fully Active iTron Horn System

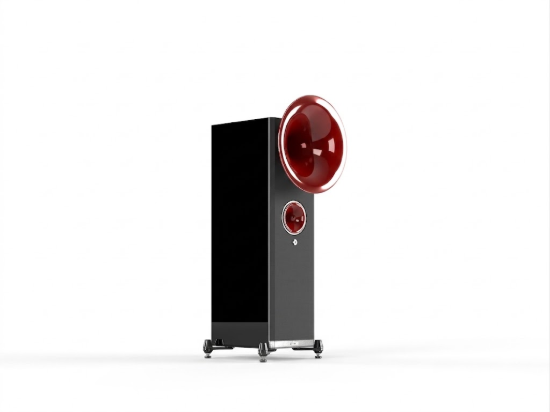

The Uno SD iTron is a scaled-down, fully active reference version of the classic Duo system, engineered to deliver the exceptional clarity, dynamics, and authority of the Duo in a more compact enclosure. Its 500 mm spherical midrange horn provides wide-bandwidth reproduction down to 300 Hz, creating an exceptionally open and immediate sound presentation.
The midrange and tweeter drivers are powered by Avantgarde Acoustic's proprietary patented iTRON Current Drive technology. Instead of relying on conventional voltage-driven amplification, iTRON delivers current directly to the drivers, providing precise control over voice-coil acceleration and enabling a direct, crossover-free signal path.
At the heart of the midrange section is the Evolution XM1 127 mm midrange driver, engineered for large linear excursion and exceptional dynamic performance. Its SoftMesh-Compound membrane is designed to suppress internal dome resonances and minimize distortion, contributing to natural tonality, fine micro-dynamics, and high-resolution reproduction.
For high-frequency reproduction, the redesigned XT2 annular tweeter horn extends the response up to 22,000 Hz while delivering 107 dB sensitivity. Its advanced design provides outstanding resolution, extended focus, wide dispersion, and extremely low distortion.
Low-frequency performance is handled by a 10-inch XB10 high-excursion bass driver featuring a massive 153 mm (6-inch) voice coil. The large voice-coil design helps minimize power compression while maintaining controlled and dynamic bass reproduction even at high output levels.
The bass section is powered by the 500-watt G3-500 amplifier, complemented by an integrated digital sound processor (DSP). The onboard DSP provides flexible room calibration, precise bass management, and fine adjustment to suit different listening environments and personal preferences.
The Uno SD iTron combines advanced active amplification, horn-loaded efficiency, proprietary driver technology, and handcrafted construction in a compact high-end floorstanding system. It is available in a range of custom finishes to complement sophisticated listening environments.
Key Features
- 107 dB system sensitivity
- Patented iTRON Current Drive direct amplifier technology
- 500 mm spherical midrange horn
- Evolution XM1 midrange driver with SoftMesh-Compound membrane
- Direct, crossover-free signal path for the midrange and tweeter
- XT2 long-throw annular tweeter horn with frequency extension up to 22,000 Hz
- 1 × 10-inch XB10 high-excursion bass driver
- 153 mm (6-inch) bass driver voice coil
- 500-watt G3-500 active subwoofer amplifier
- Advanced integrated digital sound processor (DSP)
- Parametric EQ and room-calibration capabilities
- Coplanar driver alignment for phase-coherent acoustic performance
- Zero-loss signal architecture without passive inductors or capacitors in the midrange and high-frequency signal path
- Modular G3 electronics platform designed to support future upgrades
- Handcrafted bass cabinet construction
- Multiple bespoke horn and cabinet finish options
Highlights
- Evolution Driver Technology — Next-generation drivers engineered for extremely low harmonic distortion, high resolution, and natural micro-dynamics.
- iTRON Current Drive Technology — Avantgarde Acoustic's patented current-drive architecture provides direct control over voice-coil acceleration, reducing the influence of back-EMF and enabling highly responsive driver operation.
- XT2 Annular Tweeter Horn — The advanced tweeter design combines extended high-frequency response with wide dispersion and exceptionally low distortion for detailed and transparent reproduction.
- Coplanar Driver Alignment — The acoustic centers of the drivers are precisely aligned to support coherent phase integration across the frequency range.
- Crossover-Free Signal Architecture — The midrange and tweeter use a direct signal path without conventional passive inductors and capacitors, preserving signal integrity and driver responsiveness.
- Integrated G3-500 Amplification & DSP — The dedicated 500-watt amplifier and onboard DSP provide precise bass control, room adjustment, and flexible system tuning.
- Modular G3 Platform — The electronics platform is designed with a modular architecture that allows future electronic upgrades.
- Handcrafted Construction & Bespoke Finishes — The Uno SD iTron combines handcrafted cabinet construction with a selection of custom horn and cabinet finishes for integration into premium interiors.
